Important Notice for Our Valued Customers


While many small wind turbines are widely offered on the market, some are advertised with unrealistic power ratings of 3000–4000 Watts—often at extremely low prices. Please be aware that such claims do not reflect actual performance under real-world wind conditions.

To avoid disappointment, we strongly advise you to carefully review the product specifications and ensure that the system you are considering truly meets your energy needs. Making an informed and responsible choice is essential for investing in a reliable, efficient, and long-lasting wind power solution.

3-blade turbine: If your average wind speed is consistently above 6–7 m/s, it is generally more efficient because it spins more easily in strong winds and produces more energy. 3 blades = better for normal or strong winds (higher power output)

5-blade turbine: If the wind is weak and irregular (e.g. below 5 m/s), it starts turning earlier, which is an advantage. However, it creates more resistance at higher wind speeds. 5 blades = better for low and steady weak winds, but less efficient in strong winds


You can see performance chart of wind turbine here -->

You can see manual book of wind turbine here -->

You can see mast shaft connection flange technical drawing here -->

You can see manual book of charge controller here -->


Our world leading range of iSTA-BREEZE® Ideal for camping, garden and home use.



  • Universal application for low, middle and high wind
  • 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
  • Aerodynamic design
  • Powder coated aluminum alternator
  • Low noise
  • UV-resistant Plastic + 30% glass fibers blades, successfully tested
  • Power transmission through slip ring, thereby no twisting of the cable possible Durable and low maintenance



Details for Wind Turbine
Maximum Power 800 W
Alternator Body Aluminium
Body Matarial Aluminium- Casting
Current 15A
Package Dimensions for 3 Blade: 110 x 35 x 25 cm (18,5 kg) for 5 Blade: 60 x 40 x 40 (15,5 kg) 110 x 19 x 12 cm (4,5kg)
Rated Power 700W
Voltage 48V-AC
Wind Speed
Initial Wind Speed 3 m/s
Maximum Wind Speed 14-15 m/s
Blade Specifications
Length 90 Cm
Material Composite
Noise 40 dB
Rotor Diameter 186 cm
Weight 620 Gr
Width 14.3 cm

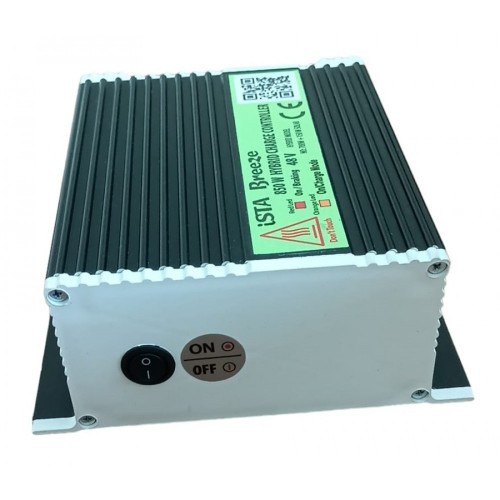

Details for 850W Hybrid Charge Controller
Battery 48v
Nominal output power 850W
Recommended battery Min. 2400W - Max. 4800W
Input voltage range 48 ~ 58V
Max. Input wind power 700W
Max. Input solar PV 150W
Overcharge protection 58V ± 0.5V AH
Wind turbine Max. Input current 15 A
Protection function When the battery is sufficiently charged, automatic braking is activated. However, manual braking is required in stormy weather.
Necessary Equipments
Battery Suitable battery group: Min 2400W - Max 4800W
Package Content
Blades: 3 Pcs / 5 Pcs
Charge Controller 1 Pcs
Connection Screws 1 Set
Flange 1 Pcs
Generator 1 Pcs
Manual Book 1 Pcs
Nose 1 Pcs
Tail - Tail Pipe 1 Pcs

Write a review

Note: HTML is not translated!
    Bad           Good

Kit i-700W 48V Wind Turbine&Hybrid Charge Controller

  • Brand: ISTABREEZE
  • Product Code: 748-W-3K-5K/850-48L
  • Availability: 1000

Available Options
