Important Notice for Our Valued Customers
While many small wind turbines are widely offered on the market, some are advertised with unrealistic power ratings of 3000–4000 Watts—often at extremely low prices. Please be aware that such claims do not reflect actual performance under real-world wind conditions.
To avoid disappointment, we strongly advise you to carefully review the product specifications and ensure that the system you are considering truly meets your energy needs. Making an informed and responsible choice is essential for investing in a reliable, efficient, and long-lasting wind power solution.
You can see performance chart of wind turbine here -->
You can see manual book of wind turbine here -->

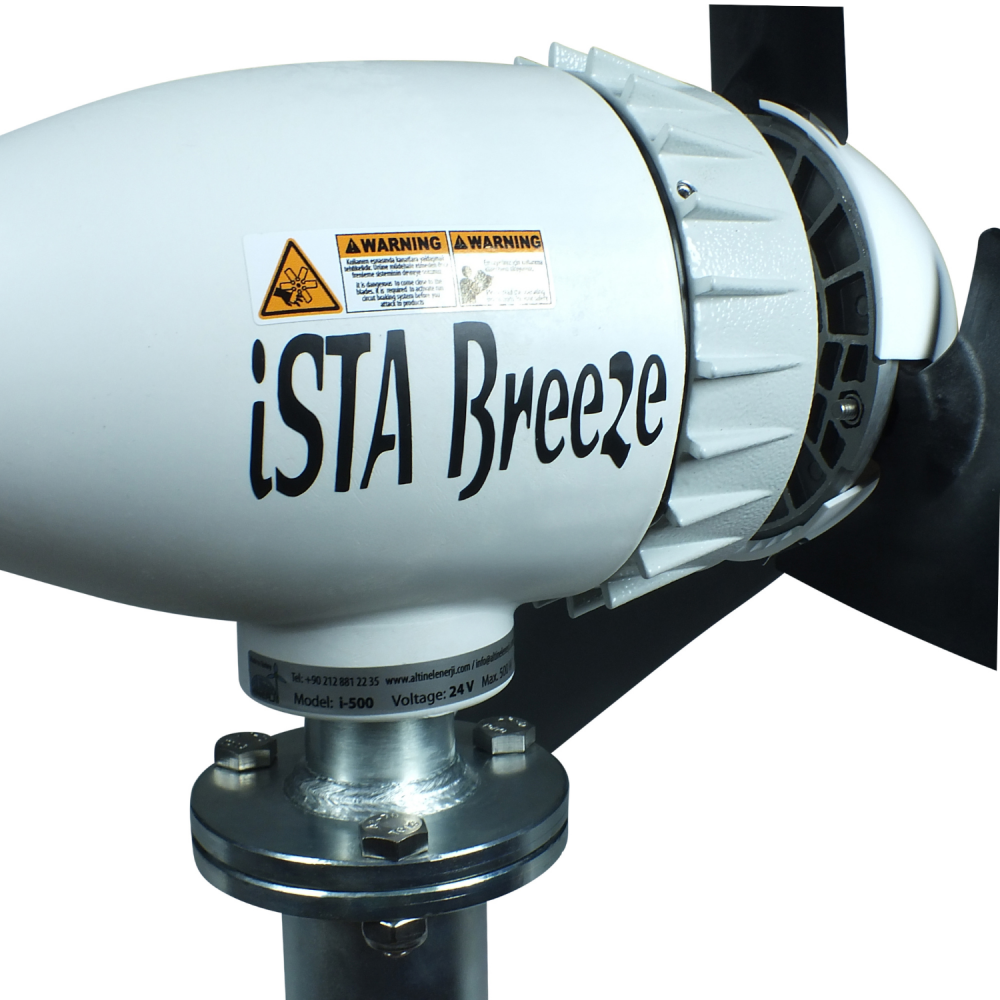

You can see mast shaft connection flange technical drawing here -->
You can see manual book of charge controller here -->
Our world leading range of iSTA-BREEZE® Ideal for marine, camping, garden and home use.
- Universal application for low, middle and high wind
- 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
- Aerodynamic design
- Powder coated aluminum alternator
- Low noise
- UV-resistant Plastic + 30% glass fibers blades, successfully tested
- Power transmission through slip ring, thereby no twisting of the cable possible
- Durable and low maintenance
| Details for Wind Turbine | |
| Body Material | Composite |
| Maximum Power | 500W |
| Current | 40 amp or 20 amp |
| Generator Body | Aluminium |
| Package Dimensions | 70 x 30 x 20 cm (7Kg) |
| Rated Power | 420W |
| Voltage | 12V-AC / 24V-AC |
| Wind Speed | |
| Initial Wind Speed | 3 m/s |
| Maximum Wind Speed | 15-16 m/s |
| Blade Specifications | |
| Length | 50 Cm |
| Material | Composite |
| Noise | 40 dB |
| Rotor Diameter | 103 Cm |
| Weight | 190 Gr (Per Blade) |
| Width | 12,5 cm |

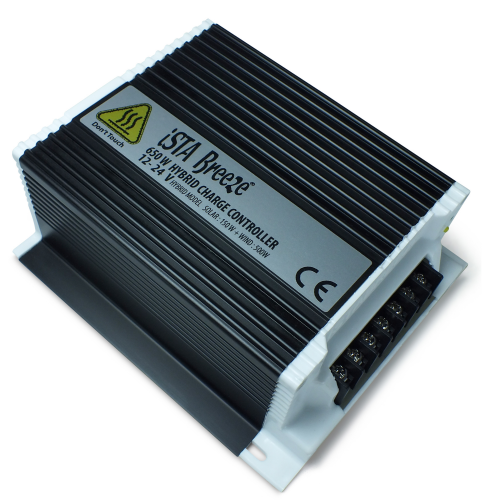

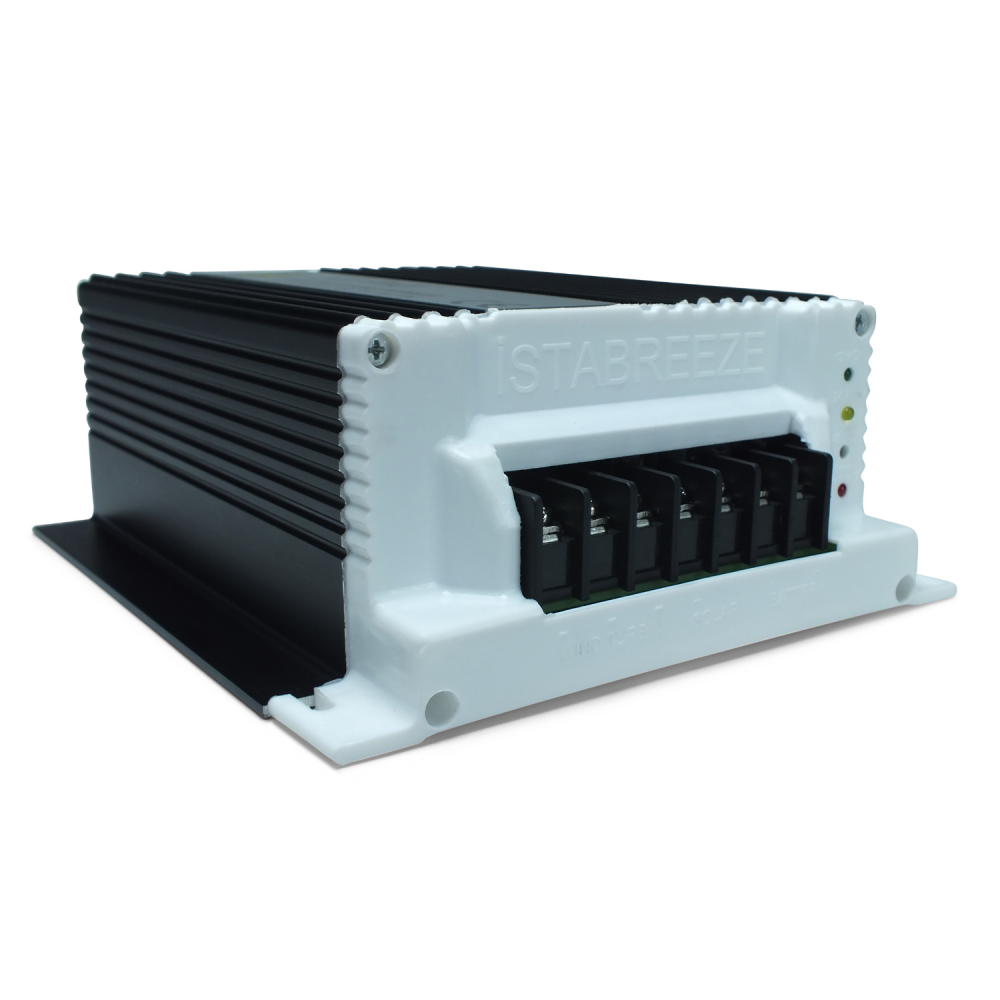

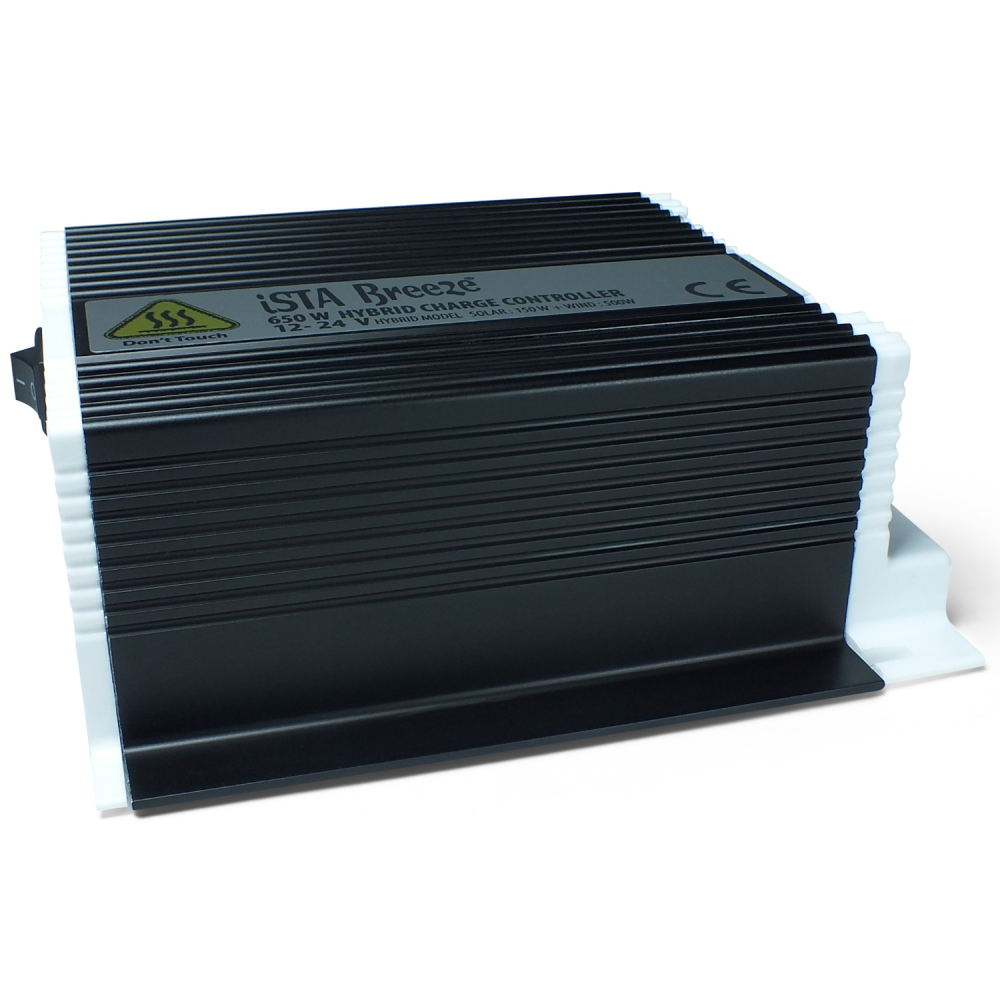

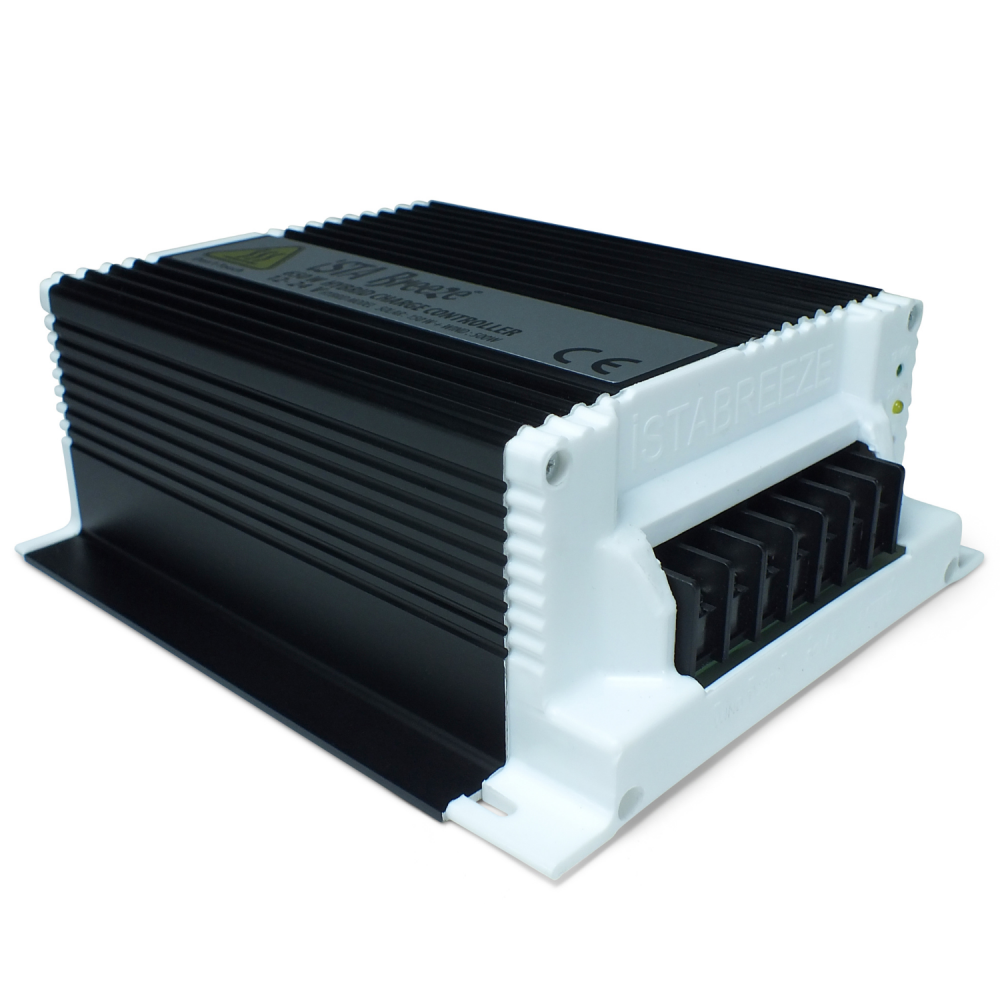

| Details for 650W Hybrid Charge Controller | |
| Battery | For 12V system: 12V For 24V system: 24V |
| Nominal output power | 650W |
| Recommended battery | Min. 1800W - Max. 2400W |
| Input voltage range | For 24V system: 24 ~ 28V For 12V system: 12 ~ 16V |
| Max. Input wind power | 500W |
| Max. Input solar PV | 150W |
| Overcharge protection | For 12V system: 14,9V ± 0.5V AH For 24V system: 29V ± 0.5V AH |
| Wind turbine Max. Input current | For 12V: 40A For 24V: 20A |

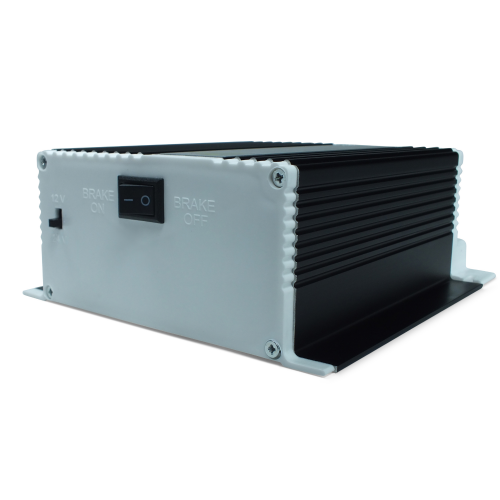

| Protection function | When the battery is sufficiently charged, automatic braking is activated. However, manual braking is required in stormy weather |
| Necessary Equipments | |
| Battery | Suitable battery group: Min 1800W - Max 2400W |

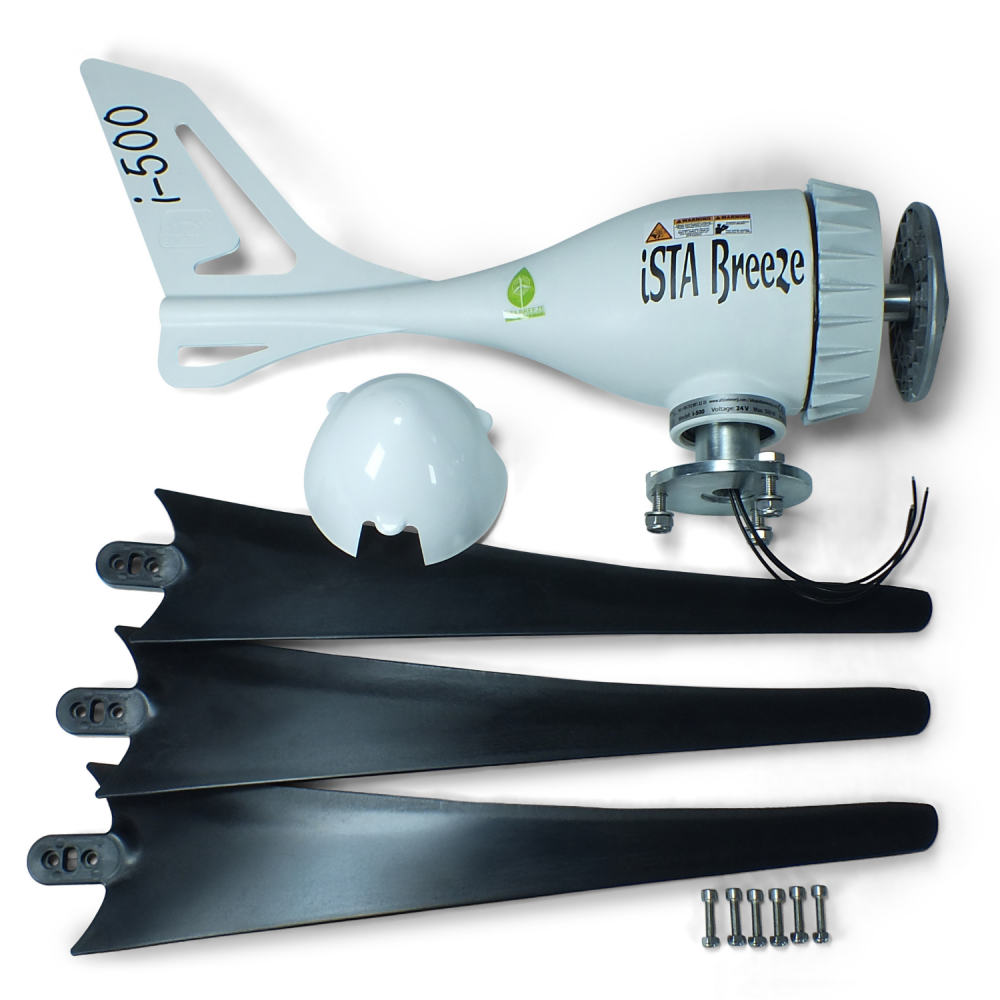

| Package Content | |
| Blades: | 3 Pcs |
| Body | 1 Pcs |
| Charge Controller | 1 Pcs |
| Connection Screws | 1 Set |
| Flange | 1 Pcs |
| Manual Book | 1 Pcs |
| Nose | 1 Pcs |

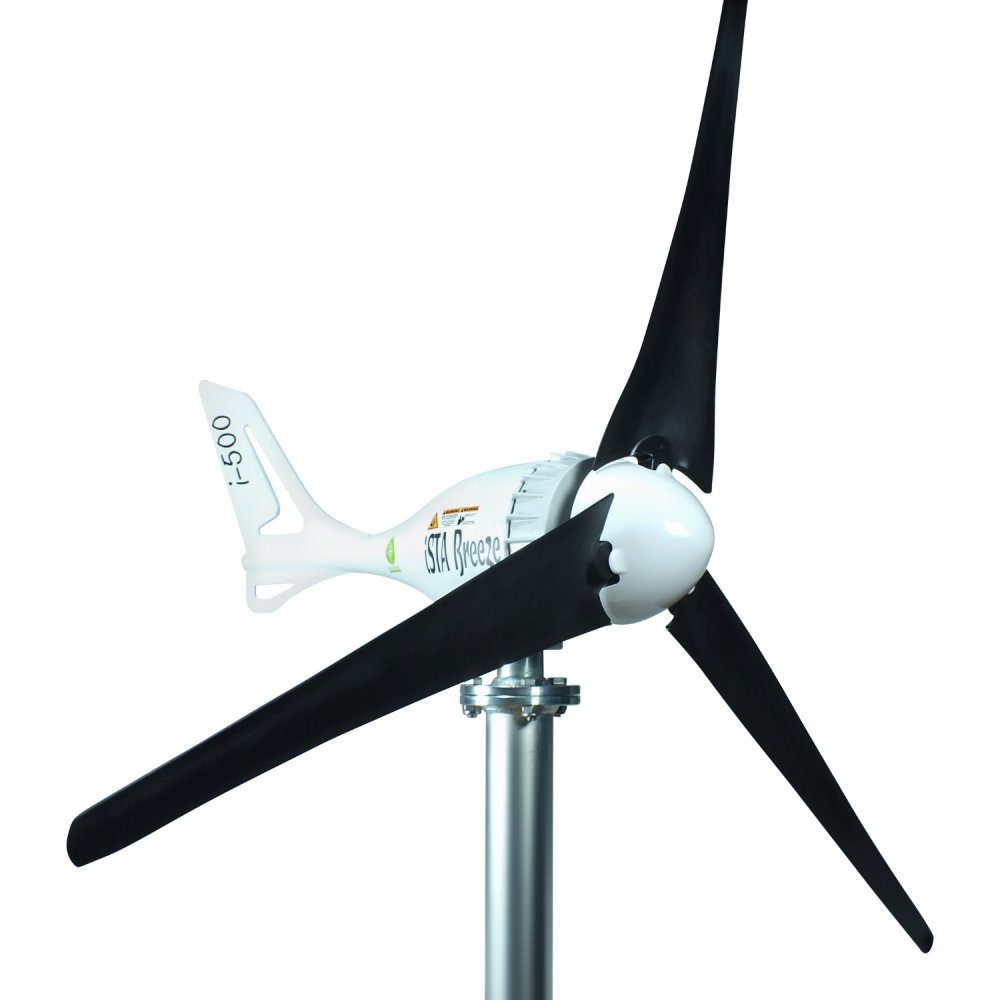

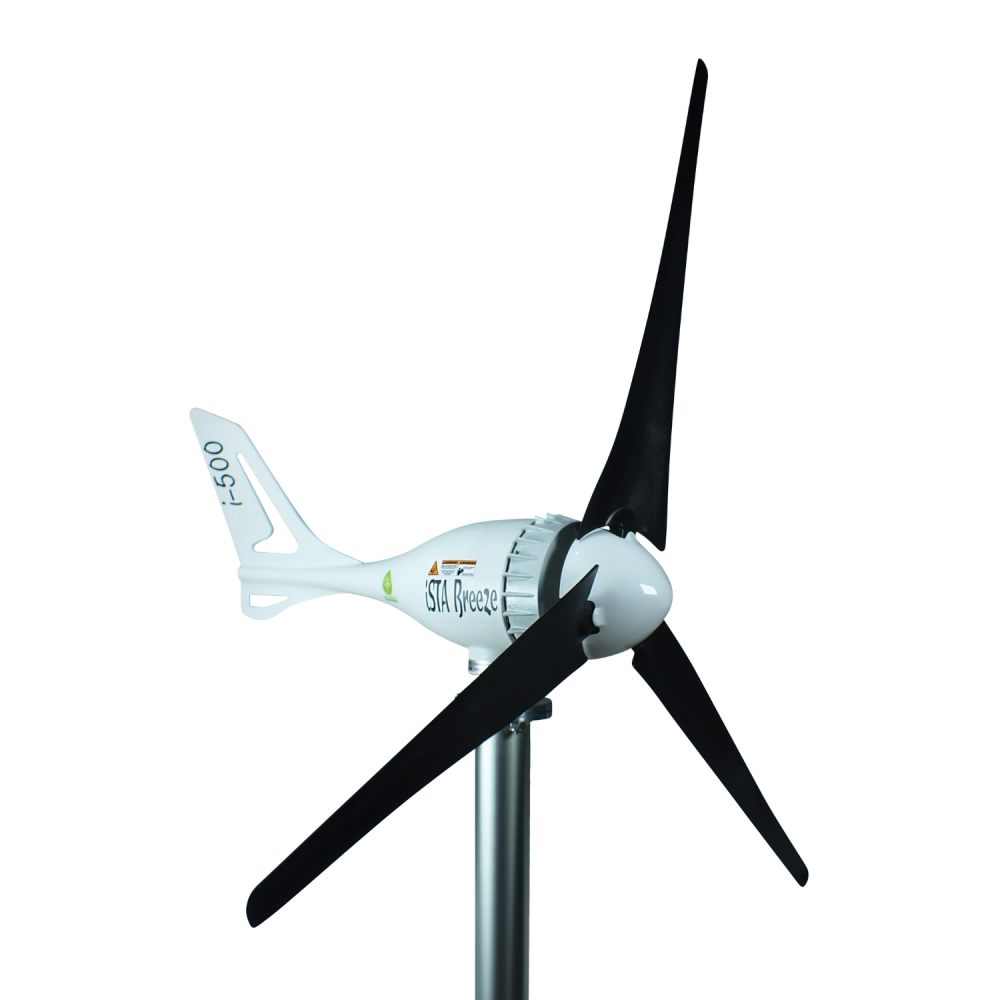

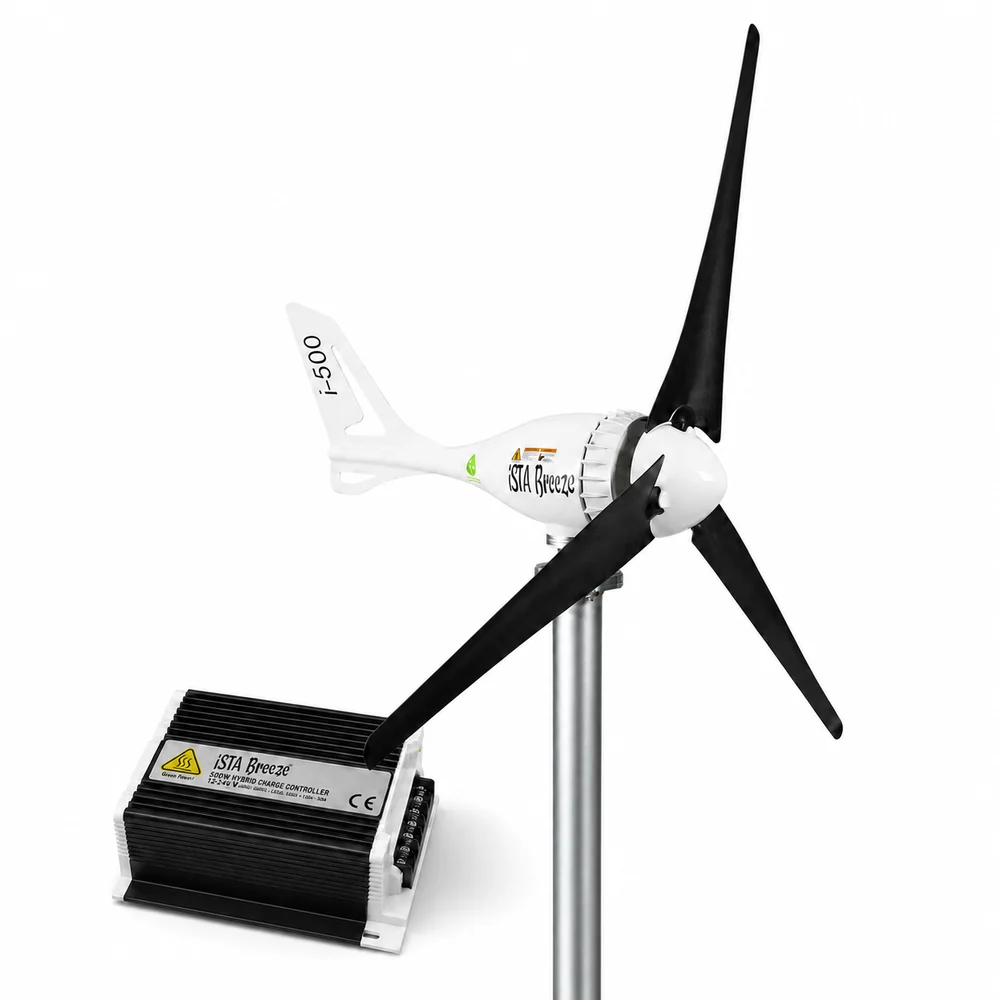

Kit i-500W 12V/24V Wind Turbine & Hybrid Charge Controller
- Brand: ISTABREEZE
- Product Code: i512B-i524B-650-12 / 650-24
- Availability: 999
