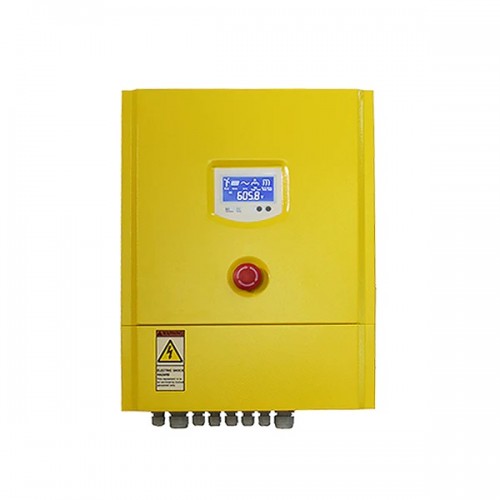

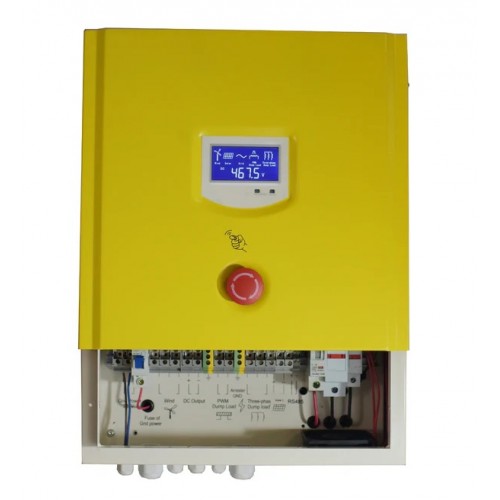

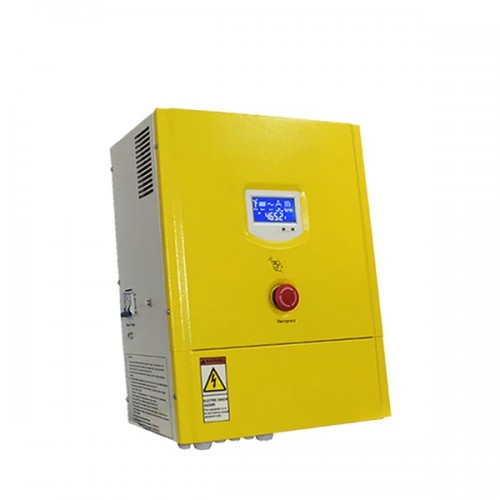

On-grid wind generator controller with integrated load control (5KW or 10KW)
Maximize your wind energy utilization with our advanced on-grid wind generator controller. This controller is available in 3KW, 5KW or 10KW power variants and provides reliable grid feed-in in Connection with our inverter.
Integrated load control: Protects your system by automatically adjusting to variable wind conditions.
User friendly: Easy to install and can be integrated into existing power systems.
Comprehensive protection: Includes overvoltage, overcurrent and overtemperature protection.
Flexible: Suitable for a variety of wind turbines depending on selection 5KW or 10KW.
Robust design: Manufactured for long life and high efficiency outdoors.
Get an efficient and reliable system for your wind turbine with our on-grid wind generator controller. Perfect for modern, future-proof energy projects.
| Model | FKJ-GT3KW | FKJ-GT5KW | FKJ-GT5KW | FKJ-GT10KW |
| Nominal power of the wind turbine | 3 kW |
5KW
|
5KW
|
10KW
|
| Wind turbine max. power | 6 kW |
10KW
|
10KW
|
20KW |
| Wind turbine rated voltage | AC 220V |
AC220V
|
AC380-400V
|
AC380-400V
|
| Solar panels power (optional) | 900 W |
1,5 KW
|
1,5 KW
|
3KW
|
| Other specifications | Rectifier, control, DC output | Rectifier, control, DC output | ||
| Automatic protection function | Overvoltage protection, mains shutdown protection, regulated supply output, arrester | |||
| Manual function | Manual brake, reset, emergency switch | |||
| display mode | LCD | |||
| Show content | Wind turbines voltage, current, power; solar voltage, current, power; DC output voltage, DC output current, DC output power, total power | Wind
turbine voltage, current, power; Solar voltage, current, power; DC output
voltage, DC output current, DC output power, total Might. |
||
| PWM constant voltage | ≥ 320 DC |
≥ 320dc
|
≥ 520dc
|
≥ 520dc
|
| 3-phase dump load voltage of the wind turbine | 350 ± 5VDC |
350 ± 5Vdc
|
540 ± 5Vdc
|
540 ± 5Vdc
|
| Wind turbine 3 phase dump load time lapse | 60 -70 minutes | |||
| Solar panels fuse | 4A |
5A
|
5A
|
8A
|
| PWM Dump Load Fuse | 16A |
25A
|
16A
|
32A
|
| DC output protection | 20A |
32A
|
20A
|
40A
|
| Working environment temperature | -30-60 ° C | |||
| Relative humidity | <90% no condensation | |||
| Noise (1m) | ||||
| Degree of protection | IP20 (indoor) IP65 (outdoor) | |||
| Cooling process | Forced air cooling | |||
| Communication interface (optional) | RS485/USB/GPRS/WiFi/Ethernet | |||
| Temperature compensation (optional) | -4 mV/°C/2V, -35°C ~ +80°C, Accuracy: ± 1°C | |||
| Controller size (mm) | 510 x 360 x 240 | 580 * 400 * 240 | ||
| Weight of the controller | 17 kg | 18 kg | 18 kg | 23 kg |
| Dump load size (mm) | 400 x 410 x 250 | 600 * 450 * 380 | 600 * 450 * 380 | 690 * 450 * 530 |
| Weight of dump load | 13 kg | 28 kg | 28 kg | 35 kg |
On-Grid wind generator controller with integrated load control 3KW - 5KW - 10KW
