You can see technical drawing of blade here -->
You can see technical drawing of flange here -->
Original IstaBreeze® Pinwheel Repeller
Robust and high quality replacement repeller blades for the small wind power wind generators. Due to the production of plastic and fiberglass mixture, the repeller are very durable and stable, but also unusually light for low starting torque.
Nose for 5 Blade models between 1Kw and 2Kw
Screw Set
You can easily use the Flange for 5 Blade with our models between 1000w and 2000w. It is 100% compatible with our 107 cm blades and generators.
| Details for 90 Cm Wind Blade | |
| Length | 90 Cm |
| Material | Composite |
| Weight | 620 Gr |
| Diameter | 186 cm |
| Details for Flange of 5 Blade | |
| Diameter | 390 Mm |
| Material | Galvanized Metal |
| Weight | 3.2 Kg |
| Feature | Steel, 5mm thickness |
| Wing mounting | M8 |
| Hole drilling (shank) (With Conic) | 22 Mm |
| Details for Nose of 5 Blade | |
| Weight | 530 Gr |
| Diameter | 40 Cm |
| Material | Composite |
| Height | 15.5 Cm |

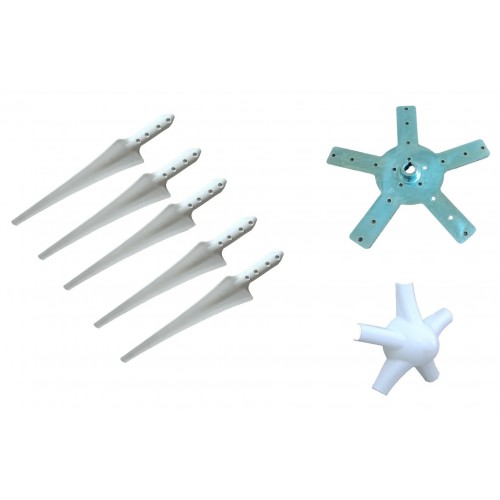

Kit 90 cm Wind Blade & Nose & Flange for 5 Blade version (With Screw Set)
- Brand: ISTABREEZE
- Product Code: 3716-5-5-FLANGE-5-NOSE-screwset
- Availability: 1000
